Determine the transfer function in notch network, Electrical Engineering

Assignment Help:

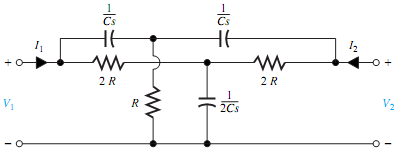

Q. The twin-tee or notch network shown in Figure is often used to obtain band-reject characteristics.

(a) Determine the transfer function V2/I1.

(b) Find the angular frequency at which the transfer function will be zero.

1981_Determine the transfer function in notch network.png
