Determine the thevenin and norton equivalent circuits, Electrical Engineering

Assignment Help:

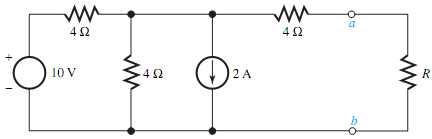

Q. (a) Determine the Thévenin and Norton equivalent circuits as viewed by the load resistance R in the network of Figure.

(b) Find the value of R if the power dissipated by R is to be a maximum.

(c) Obtain the value of the power in part (b).
