Determine the simplified sop boolean expression, Computer Engineering

Assignment Help:

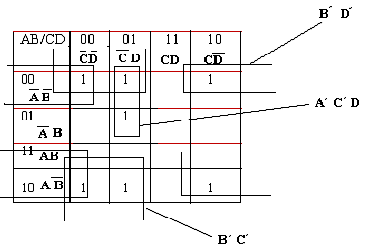

The Karnaugh map for a SOP function is given below in figure. Determine the simplified SOP Boolean expression.

1167_Determine the simplified SOP Boolean expression.png

Ans.

749_Determine the simplified SOP Boolean expression1.png

F= B'C' + A'C'D + B'D'
