Determine the shear force, Physics

Assignment Help:

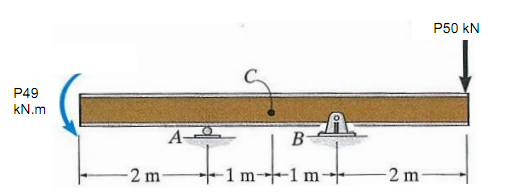

Determine the Shear Force in kN rounded to 1 DP and Bending Moment in kN.m rounded to 1 DP at point C in the beam when the couple at the left hand end is P49 kN.m and the point load at the right hand end is P50 kN.

The Shear Force in kN at C rounded to 1DP is

 ANS

The Bending Moment in kN.m at C rounded to 1DP is

ANS



2143_Determine the Shear Force.png


Related Discussions:- Determine the shear force

Michelson interferometer, Ask question 15. When the movable mirror of a Mic...

Ask question 15. When the movable mirror of a Michelson''s interferometer is moved through a distance of 0.03mm, 100 fringes are displaced, what is the wavelength and color of the

Amplitude of the resultant wave function, Two travelling sinusoidal waves a...

Two travelling sinusoidal waves are described by the wave functions Y1 = 55.00 sin[π(4.00x - 1200t)] Y2 =55.00 sin[π(4.00x - 1200t - 0.250)] where x, Y1 , and Y2 are in meter

Why we feel sky blue in color, Why we feel sky blue in color?  The blu...

Why we feel sky blue in color?  The blue color of the sky is because of Rayleigh scattering. As light moves by the atmosphere, most of the longer wavelengths pass straight thr

Magnetic field and electric current., the magnetic field at a dictance of 2...

the magnetic field at a dictance of 2cm from the axis of a straight conductor carrying current is 12mT.Find the currentin the conductor?

Why don''t diode as a battery?, Why because it is not a source as Li-ion ba...

Why because it is not a source as Li-ion battery. If we want to measure the voltage(build in voltage) with in the diode we have to use the external source. We can''t directly measu

Determine the diameter of ring in newtons rings experiment, In a Newton's r...

In a Newton's rings arrangement the diameter of a bright ring is 0.5cm. Determine the diameter of ring if the lens placed on the plane glass plate is replaced by another one having

Explain how tunneling takes place in forward bias, Describe how tunneling t...

Describe how tunneling takes place    When  tunnel  diode  is  forward  biased,  its  initial  behaviour  is  similar  to  that when it's reverse biased. Now, some of the fille

Electrons and holes in semi-counductor, Electrons and holes in semi-counduc...

Electrons and holes in semi-counductor Metals have free electrons available in conduction band for conduction of electric current. As the valence band overlaps the conduction b

What is the displacement of the car, The v-t graph of a car is shown in the...

The v-t graph of a car is shown in the accompanying figure. What is the displacement of the car from t = 0.00 s to t = 15.0 s?
