Determine the rectified load voltage, Electrical Engineering

Assignment Help:

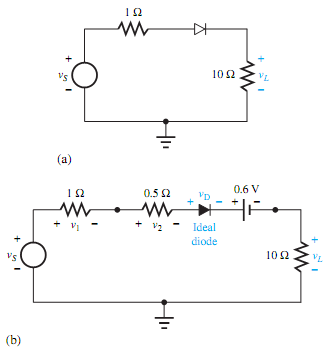

Consider the circuit of Figure (a) with vS(t) = 10 cos ωt. Use the piecewise-linear model of the diode with a threshold voltage of 0.6 V and a forward resistance of 0.5  to determine the rectified load voltage vL.

2477_Determine the rectified load voltage.png
