Determine the percentage ripple voltage, Electrical Engineering

Assignment Help:

Problem

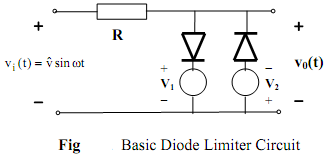

(a) Figure gives the basic circuit of the diode limiter. Assuming that the diodes are ideal sketch and annotate the waveforms of the input voltage vi(t) and the load voltage vo(t).

212_Determine the percentage ripple voltage.png

(b) Figure gives the basic circuit of the peak rectifier. Assuming that the diode is ideal sketch and annotate the waveforms of the input voltage vi(t), the load voltage vo(t) and the diode current iD(t).

2337_Determine the percentage ripple voltage1.png

(c) Determine the percentage ripple voltage 150_Determine the percentage ripple voltage2.pngon the output voltage of the rectifier circuit shown in Figure. The frequency of the input voltage is 1 kHz.

(d) Discuss how you would approach the problem of calculating the value of the peak diode current in the rectifier circuit given in Figure.
