Determine the minimum acceptable diameter of the shaft, Mechanical Engineering

Assignment Help:

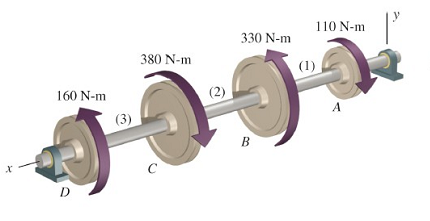

The Shaft is made of a material with an allowable shear strength of 80 Mpa.

a.       Develop the torque diagram

b.      Determine the minimum acceptable diameter of the shaft

1059_Determine the Minimum Acceptable Diameter of the Shaft.png
