Determine the maximum load, Physics

Assignment Help:

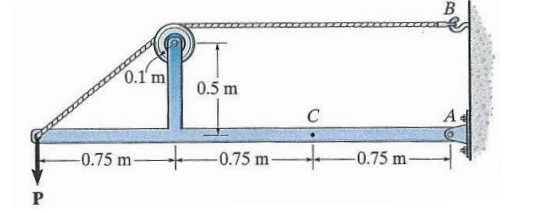

The cable will fail when the tension is P54 kN. For a Factor of Safety of 1.5 for the cable, determine the largest vertical load P that the frame will support, and then for that load determine the Shear Force in kN rounded to 1 DP and the Bending Moment in kN.m rounded to 1 DP at point C in the beam. Then determine the axial force rounded to 1 DP at C when tension is considered positive, compression considered negative.

The maximum load P that the frame will support in kN rounded 1DP is

ANS:

The Shear Force in kN at C rounded to 1DP is

 ANS:

The Bending Moment in kN.m at C rounded to 1DP is

 ANS:

The axial force in kN at C rounded to 1DP is

ANS:

318_Determine the Maximum Load.png
