Determine the magnitude and direction of the reaction, Physics

Assignment Help:

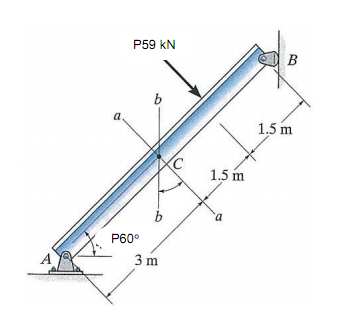

A load of P59 kN acts at right angles to the beam AB.  The angle of the beam to a horizontal x axis at A is P60. The supports are a pin joint at A and a Rocker at B.  Determine the Shear Force in kN rounded to 2 DP and the Bending Moment in kN.m rounded to 2 DP at point C in the beam. Then determine the magnitude and direction (rounded to the nearest degree) of the reaction at A from the positive x axis.

The Shear Force in kN at C rounded to 2 DP is

 ANS

The Bending Moment in kN.m at C rounded to 2 DP is

 ANS

The magnitude of the vertical reaction in kN at A rounded to 2 DP is

 ANS

The direction of the reaction at A from a positive x axis is

 ANS

The axial force in kN at C rounded to 2 DP is

ANS

2351_Determine the Magnitude and Direction of the Reaction.png
