Determine the magnitude and direction of a single force, Physics

Assignment Help:

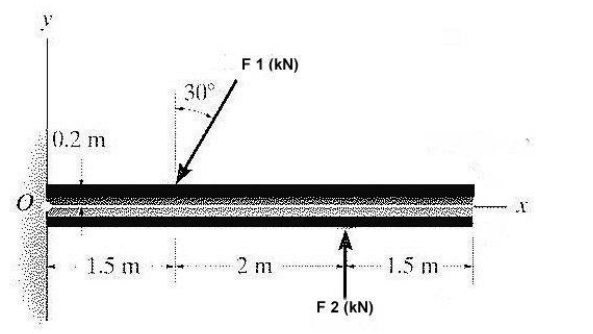

The cantilevered beam below is supported at O.  F1 and F2 in kN are given in P21 and P22 respectively and act on the beam as shown.  Determine the magnitude and direction of a single force that has the same effect on the beam as F1 and F2.  Determine the distance along the x axis from point O that the line of action of the single resultant force crosses the x axis. (Hint ± the line of action of F1 crosses the x axis at 1.384m from O)

The magnitude of the single resultant force in kN rounded to 2 DP is

ANS

The angle rounded to the nearest degree that the line of action of the single resultant force makes with the x axis is

ANS

The absolute or magnitude of the distance from O to where the line of action of the single resultant force crosses the x axis in metres rounded down to 2 DP is

ANS
