Determine the head loss, Physics

Assignment Help:

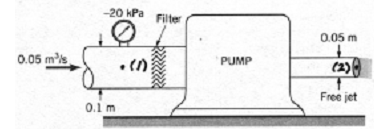

The pump shown in the figure adds 20 kW of power to the flowing water. The only significant loss is that which occurs across the filter at the inlet of the pump. Determine the head loss for this filter. Notice that the gage pressure upstream of the filter is negative and the jet at the pump exit is free. Take α = 1.

1757_Determine the head loss.png
