Determine the force applied to the plunger by system, Electrical Engineering

Assignment Help:

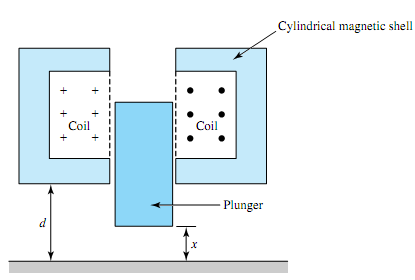

Q. For the electromagnet shown in Figure, the λ-i relationship for the normalworking range is given by i = aλ2 + bλ(x -d)2 ,where a and b are constants. Determine the force applied to the plunger by the electric system.

182_Determine the force applied to the plunger by system.png
