Determine the cyclomatic complexity, Software Engineering

Assignment Help:

Q. Consider the program given below

void main()

{

int i,j,k;

readln (i,j,k);

if( (i < j) || ( i > k) )

{

writeln("then part");

if (j < k)

writeln ("j less then k");

else writeln ( " j not less then k");

}

else writeln( "else Part"); }

(i) Draw the flow graph. (4)

(ii) Determine the cyclomatic complexity. (4)

(iii) Arrive at all the independent paths. (8)





Ans:

void main()

{

int i,j,k;

readln (i,j,k);

if( (i < j) || ( i > k) )

{

writeln("then part");

if (j < k)

writeln ("j less then k");

else writeln ( " j not less then k");

}

else writeln( "else Part");

}

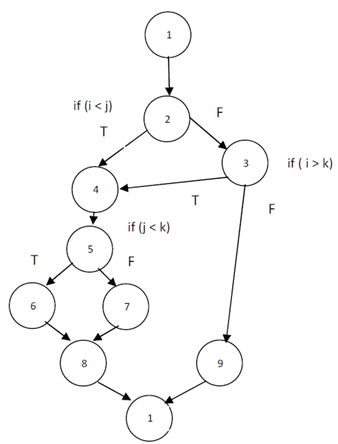

206_Determine the cyclomatic complexity.png

(ii) Cyclomatic complexity = E - N + 2 = 12 - 10 + 2 = 4

(iii) The four independent paths are

Path1 : 1 2 3 9 10

Path2 : 1 2 4 5 7 8 10

Path3 : 1 2 4 5 6 8 10

Path4 : 1 2 3 4 5 7 8 10
