Determine rc in given figure, Electrical Engineering

Assignment Help:

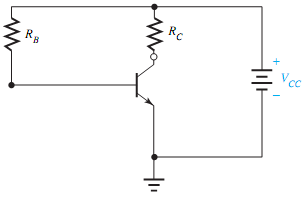

Q. Afixed-biasmethod is illustrated in Figure. Assuming ICBO to be small compared to IBQ and ICQ, find RB such that the operating point corresponds to ICQ = 14 mA, VCEQ = 7 V, when VCC = 12 V and the silicon BJT has a nominal β = 70. Also determine RC.

2020_Determine RC in given figure.png
