Determine power reflection coefficient at the input port:

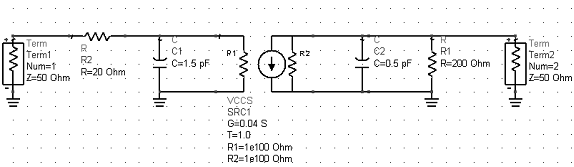

For the MESFET equivalent circuit shown below, find S11 and S22. Note that resistances associated with the voltage-controlled current source are so large, they can be neglected.

1407_Determine power reflection coefficient at the input port.png

What is the power reflection coefficient at the input port?

What is S12? Why?

If the input had to be matched using a single lumped element, what would it be, and would it be series or shunt?
