Determine maximum tension in the belt, Mechanical Engineering

Assignment Help:

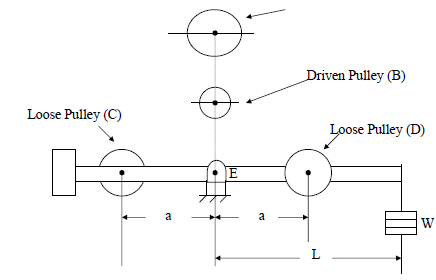

The following data is provided for belt transmission dynamometer as shown in figure, NA = 400 r.p.m., DA = 750 mm, DB = DC = DD = 250 mm,
L = 800mm, Power = 8KW. Determine :-

The value of a.

Value of W when Power transmitted is 8 KW.

Value of W when the belt just starts to slip on a driving Pulley

Take μ = 0.2 and on maximum tension in the belt as 1600N.

1198_Determine maximum tension in the belt.png
