Design the high-pass filter, Electrical Engineering

Assignment Help:

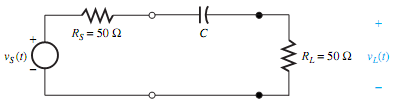

Q. Design the high-pass filter shown in Figure (by determining C) to have a half-power frequency of 1 MHz.

203_Design the high-pass filter.png


Related Discussions:- Design the high-pass filter

How to connect the coil to the supply, A coil has an inductance of 1.2H and...

A coil has an inductance of 1.2H and a resistance of 40? and is connected to a 200 V, d.c. supply. Verify the approximate value of the current flowing 60 ms after connecting the co

Determine the parameters of the equivalent circuit, The no-load and blocked...

The no-load and blocked-rotor tests on a three phase, wye-connected induction motor yield the following results: • No-load test: line-to-line voltage 400 V, input power 1770 W,

Draw a one-line diagram of three-phase distribution system, Q. A three-phas...

Q. A three-phase transformer bank consisting of three 10-kVA, 2300:230-V, 60-Hz, single-phase transformers connected in Y- is used to step down the voltage. The loads are connecte

Low pressure gas hazards, Low Pressure Gas Hazards : Safety screens and wi...

Low Pressure Gas Hazards : Safety screens and wire-mesh guards should be placed round evacuated glassware and safety goggles or a face shield must be worn against the possibility

Explain emergency repairs to rail fracture, Q. Explain Emergency Repairs to...

Q. Explain Emergency Repairs to rail fracture? Emergency Repairs - The fractured rails shall be joined by using the arrangements clamps, fish plates. If the gap at fracture doe

Determine the effective input noise temperature, Q Determine the effective ...

Q Determine the effective input noise temperature of a long piece of waveguide (that connects an antenna to a receiver) with a loss of 3.4 dB at 12 GHz and a physical temperature o

Determine efficiency on diffrent load cycle, Q. A 75-kVA transformer has an...

Q. A 75-kVA transformer has an iron loss of 1 kW and a full-load copper loss of 1 kW. If the transformer operates on the following load cycle, determine the all-day efficiency:

Advantages and disadvantages of alloying steel with silicon, State the adva...

State the advantages and disadvantages of alloying steel with silicon for use as magnetic materials in transformer and electric machines. Extensive utilize, is made of iron-sil

Calculate terminal voltage, A permanent magnet DC motor is being considered...

A permanent magnet DC motor is being considered for use as a drive motor for a vehicle. The motor is known to have the following properties No load speed @ 100 V = 2000 rpm torq

For the nor and inverter realizations, Q. For the NOR and inverter realizat...

Q. For the NOR and inverter realizations shown in Figure, find the truth table, the type of gate realized, and the expression for the logic output, in each case.
