Design a model for object oriented development

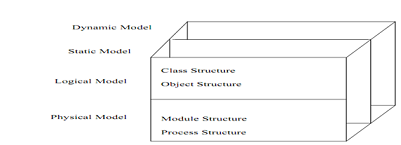

The model for object oriented development could be shown as in Figure. It could be classified as dynamic / static and physical / logical model.

1668_Model for Object oriented development.png

      Figure: The Model for Object oriented development
