Describe in brief about the Sequence Diagrams

Sequence diagrams are interaction diagrams which emphasize time ordering of messages. In UML, it is shown as a table which shows objects arranged along the X axis and messages ordered in rising time along the Y axis. It has a global life line and focus of control. An object life line is vertical dashed line which represents existence of an object over a period of time. The focus of control is tall and thin rectangle which shows period during that an object is performing an action. The notation for depiction of sequence between objects with certain conditions is shown as:

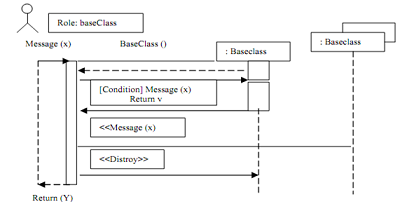

                                                                              Figure: Sequence diagram


Related Discussions:- Describe in brief about the sequence diagrams

EER models, Ask question #MinimThe Georgia Tech Library (GTL) has approxima...

Ask question #MinimThe Georgia Tech Library (GTL) has approximately 16,000 members, 100,000 titles, and 250,000 volumes (an average of 2.5 copies per book). About 10 percent of the

Describe the primary key functions, Describe the primary key functions? ...

Describe the primary key functions? Primary Key : The primary key is an attribute or a set of attributes in which uniquely identify a specific example of an entity. Every entit

In e-r diagram how derived attribute are represented, In E-R Diagram how de...

In E-R Diagram how derived attribute are represented ? In E-R Diagram By Dashed ellipse derived attribute are represented.

Hashed file organisation, Hashed File Organisation Hashing is the most ...

Hashed File Organisation Hashing is the most common form of purely random access to a database or file. It is also used to access columns that do not have an index as an optimi

What is the use of group by clause, What is the use of group by clause? ...

What is the use of group by clause? Group by clause is used to be relevant aggregate functions to a set of tuples. The attributes given in the group by clause are used to shape

Increased parallelism-data replication, Increased parallelism : Since the r...

Increased parallelism : Since the replicated date has several copies a query can be distributed or can be answered from the smallest loaded site. Also, with more replicas you have

What are the benefits of ooa technology, What are the benefits of OOA techn...

What are the benefits of OOA technology? Using OOA technology can produce many benefits, such as:  i) Reusability of code  ii) Productivity is gained through direct mappi

Fragmentation, let us consider a table having 2200 records and the fixed si...

let us consider a table having 2200 records and the fixed size of the table to be considered as 25.then how many numbers of table is requredto perform horizontal fragmentation

What do you understand by acid, What do you understand by ACID? - ACID...

What do you understand by ACID? - ACID (Atomicity Consistency Isolation Durability) is a quality sought after in a reliable database. Here's the relevance of each quality:

A file manipulation command that extracts some records, A file manipulation...

A file manipulation command that extracts some of the records from a file is called ? A file manipulation command that extracts some of the records from a file is called SELECT
