Describe the construction and working of carbon dioxide laser.

Construction and Working:

The most fundamental form of a CO2 laser comprise a gas discharge (along with a mix close to which specified above) along with a total reflector at one end, and an output coupler (generally a semi-reflective coated zinc selenide mirror) at the output ending. The output coupler reflectivity is usually around 5 to 15 percent. The laser output may also be edge-coupled into higher power systems to decrease optical heating difficulties. The carbon dioxide (CO2) laser gas mixture consists of 70 percent He, 15 percent CO2, and 15 percent N2.

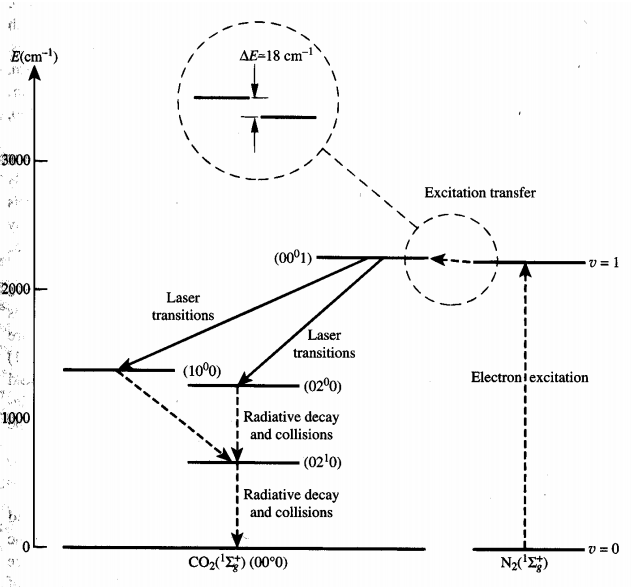

The rotational and vibrational modes of the CO2 cannot be excited themselves with photons. While a voltage is placed across the gas, electrons collide along with the N2 molecules and excite them to their lowest vibrational levels. All vibrational levels occur to be at energy very close to the energy of the asymmetric vibrational states into the CO2 molecule. Currently, the excited N2 molecules populate the asymmetric vibrational states within the CO2 molecule by collisions. The infrared output of the laser is the consequence of transitions among rotational states of the CO2 molecule of the first asymmetric vibrational mode (001) to rotational states of both the initial symmetric stretch mode (100) and second bending mode (020). Such transitions are demonstrated in the Energy level diagram below:

1327_Construction and working of carbon dioxide laser.png

Construction and working of carbon dioxide laser

In words of Hollas, the emitted photons like a result of these transitions happen at 10.6µm and 9.6µm, correspondingly. The (100) first and second (020) vibrational levels depopulate to lower vibrational levels. Once more, through collisions, the carbon dioxide molecule transfers energy through these lower vibrational levels to the He atoms and the carbon dioxide (CO2) return to ground state.
