Define the X-NOR or Exclusive-NOR Gate?

112_Define the X-NOR or Exclusive-NOR Gate 1.png

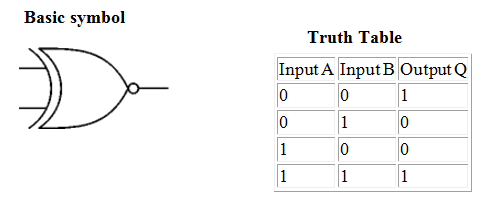

This is the EX-OR gate with the output inverted, as shown by the 'o' on the output and the output Q is true if inputs A and B are the SAME (both true and both false): Q = (A AND B) OR (NOT A AND NOT B) EX-NOR gates can only have 2 inputs.

2099_Define the X-NOR or Exclusive-NOR Gate 2.png

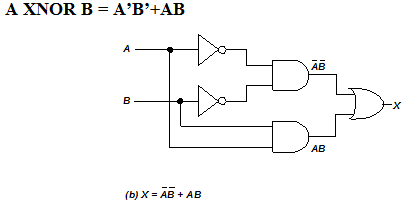

A XNOR B = A'B'+AB

1111_Define the X-NOR or Exclusive-NOR Gate 3.png
