Define The universal property of NAND and NOR Gates?

The NAND and NOR gates are called universal gates, because any gate can build by using these two gates.

1711_Define The universal property of NAND and NOR Gates.png

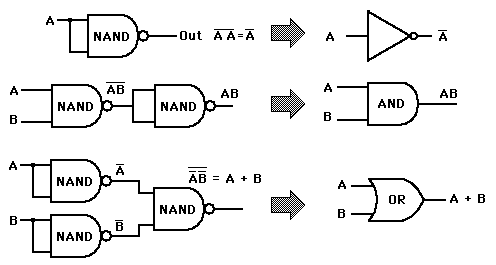

The universal property of NAND gates

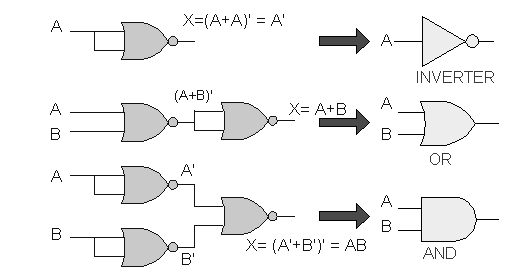

In a similar manner, it can be shown that NOR gates can be arranged to implement any of the Boolean operations.

786_Define The universal property of NAND and NOR Gates 1.png
