Define the side rake angle, Mechanical Engineering

Assignment Help:

Define the Side Rake Angle?

It measured the slope of top surface of the tool to the side in the direction perpendicular to longitudinal axis it also guides the direction of chip away from the job, the amount that a chip is bend depend upon this angle. With increase in side rake angle, the amount of chip has to bend decreases and hence the power required to part and bend to chip decreases. As shown in figure

1147_Side Rake Angle.png

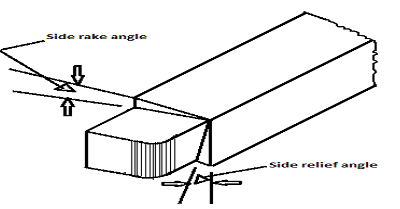

Figure: Side Rack Angle
