Define the concept of Object Diagram

An object diagram shows a set of the objects and their relationships with each other at a point of time. In a static view, object diagram is used to model interactions which consist of objects that collaborate without any message passed between them. It contains graphical contents, name, constraints, notes, packages and subsystems. The notation for objects and relationship among objects is shown as:

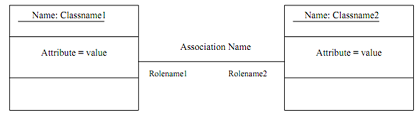

 Figure:  Relationship among objects
