Define Realization of one flip flop using other flip flops?

It is probable to implement a flip flop circuit using any other circuit.

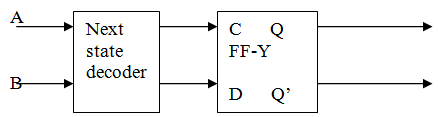

Universal block diagram is shown below.

358_Define Realization of one flip flop using other flip flops.png

To understand a flip flop X using another flip flop Y along with a combinational circuit called next state decoder is used which functions like flip flop X. A & B are the inputs of flip flop X and C ,D are the inputs of Y called next sate code. We have to discover the inputs of Y.
