Creating a new style

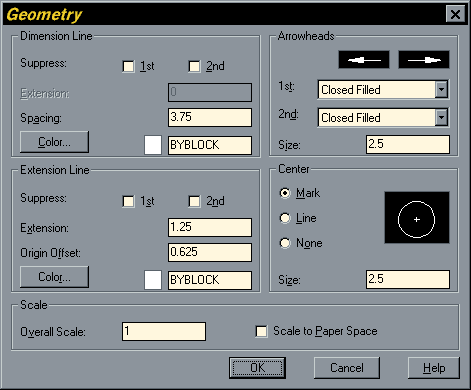

To create a new dimension style, make sure the STANDARD style is the current style, click in the Name edit box then type the name of the new style you want to create. Click Save button. You will see a message in the lower left corner of the dialogue box which says "Created name from STANDARD" where name is the new style name which you typed. The new style is automatically set as the current style. You may rename the new style if you wish, simply by typing a new name in the Name edit box and clicking on the Rename button.

                                           1409_Creating a new style.png
