Create a e-r diagram, Database Management System

Assignment Help:

Information about films holds information about movies, stars and studios. Movies have a title, year of production, length and the film type. Stars have a name and address. Studios have a owner and a banner. Movies are shot in studios that own them. A movie is shot in just one studio. Stars are linked to one or more studios but can act in any film that may or may not be owned through the studio. Arrive at an E-R diagram. Clearly denotes attributes, keys, the cardinality ratios and participation constraints.

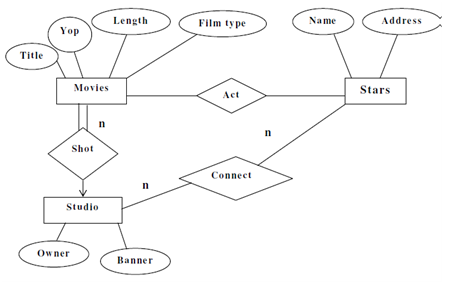

806_ER mdel.png


Related Discussions:- Create a e-r diagram

Create table, What are the advantages of creating a table from existing tab...

What are the advantages of creating a table from existing table?

Transaction, Draw the precedence graph of the following schedule and determ...

Draw the precedence graph of the following schedule and determine whether the schedule is serializable. (Note that all instructions, except lock and unlock, are omitted. We assume

What is dbms and what are functions of dbms, What is DBMS and what are func...

What is DBMS and what are functions of DBMS? DBMS consist of collection of integrated data and set of program to admission those data. The functions performed by a typical

Write query to select student from math department, Consider the table stud...

Consider the table student and list names of students in the departments other than maths and computer. SELECT std_name FRM student WHERE dept_name NOT IN (‘Maths','Computer);

Draw the dependency diagram for the relation, Consider the subsequent relat...

Consider the subsequent relation   Professor (Pfcode, dept, head, time)   It is assumed that      (i) A professor can work in much more than one

Implementation of association as an object, Implementation of association a...

Implementation of association as an object Implement as a separate association object, independent of either class, as in Figure. An association object is a group of pairs

Draw an entity-relationship model, Draw an Entity-Relationship model for ...

Draw an Entity-Relationship model for the relational schema given in the Appendix. Show all the entities, relationships, relationship names, and attributes and also underline the

How to define a structure with tag name car_table, QUESTION (a) Conside...

QUESTION (a) Consider a car database consisting of car model, car make, car origin, Engine capacity, color, cost.

A file manipulation command that extracts some records, A file manipulation...

A file manipulation command that extracts some of the records from a file is called ? A file manipulation command that extracts some of the records from a file is called SELECT

In e-r diagram how relationship type is represented, In E-R Diagram how rel...

In E-R Diagram how relationship type is represented ? In E-R Diagram relationship type is represented as a Diamond.
