Copy  data byte  10H LDAX  instruction

Example : Copy  data byte  10H  stored at memory  location 3020 H to  the accumulator using  LDAX  instructions.

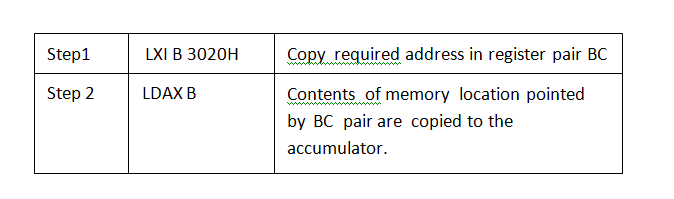

Solution : To use LADX  instruction we have to copy the required memory  address  3020H, in  register  pair BC or DE. We are using  register pair BC in this  example. DE  pair may  also be  used.

2295_LDAX ( Load Accumulator Indirect) Instruction.PNG
