Convert logic circuit in a binary code, Computer Engineering

Assignment Help:

The logic circuit given below, converts a binary code y₁y₂ y₃ into

9_Convert logic circuit in a binary code.png

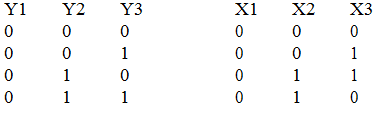

Ans. Gray code is
X1 = Y1, X2 = Y1 XOR Y2 , X3 = Y1 XOR Y2 XOR Y3
For

1398_Convert logic circuit in a binary code 1.png
