With the help of a suitable diagram, explain how do you convert a JK flipflop to T type flipflop.

Ans. As here flip flop is JK flip flop and it is required to convert JK in T.

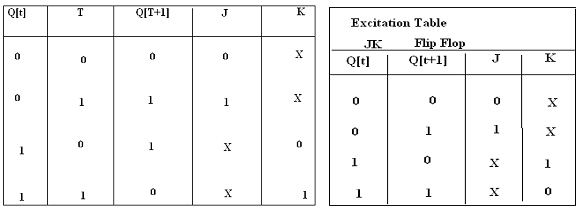

Firstly we draw the characteristic table for T flip flop and after that relate the transition along with excitation table of JK flip flop.

1559_Convert a JK flipflop to T type flipflop.png

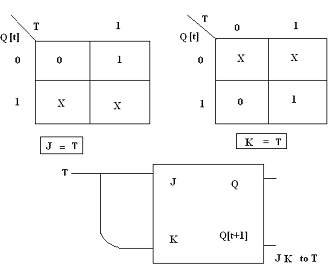

Then we solve K maps for J and K by getting T and Q(t) as input.

2266_Convert a JK flipflop to T type flipflop12.png

Logic diagram convert a JK flipflop into T type flipflop.
