Construct a network diagram showing the critical path, Project Management

Assignment Help:

ST is the operations director of F Bakery. He is in the process of putting together a project plan for the introduction of a latest production plant that will enable the bakery to expand its product range, moving into high quality cakes and desserts.

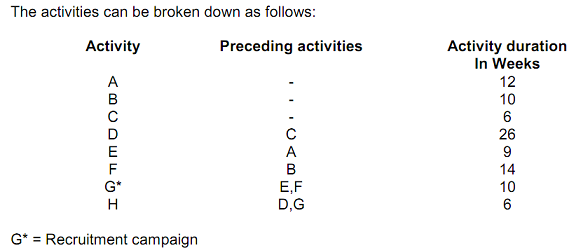

ST has identified a number of activities that must be undertaken to set up the latest bakery production plant. He now intends to construct a network analysis to assist ST in the planning of the project. This will also enable him to give an answer for the HR manager who has asked him to provide advice on when she can begin the recruitment campaign to select new employees required to work in the new part of the bakery.

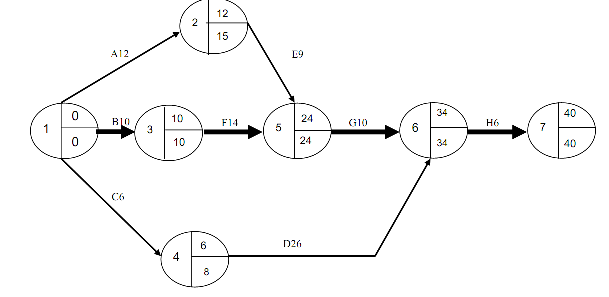

Construct a network diagram showing the critical path for the introduction of the latest production plant for the bakery and the overall duration of the project.




Critical Path = B,F,G,H
Duration = 40 Weeks
