Configure the Physical Topology

Step 1: Cable the network.

Refer to the figure and table below for the essential cables.

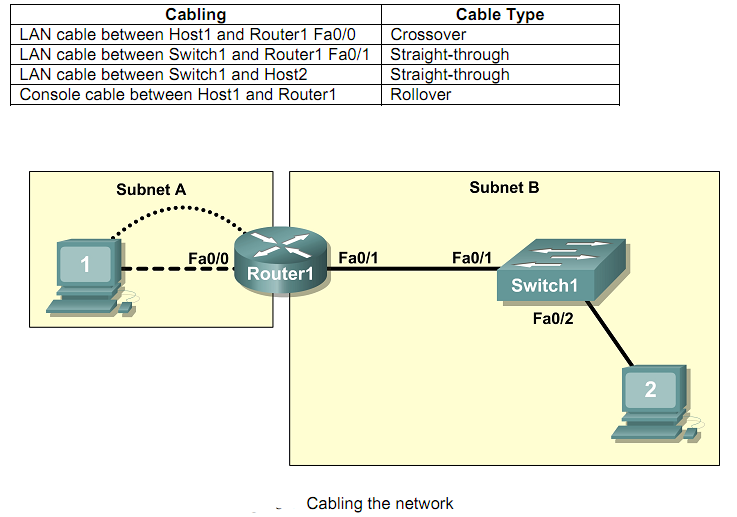

44_cable the network.png

Step 2: Physically connect lab devices.

Cable the network devices as shown in Figure . Turn power on to all devices if it is not by now on.

Step 3: Inspect the network connections.

Prove the connections visually.
