Compute position and magnitude of the resultant force, Mechanical Engineering

Assignment Help:

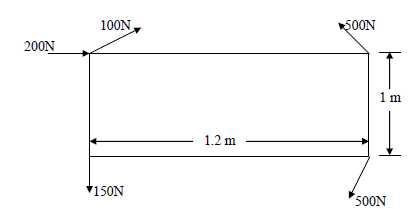

Compute the position and magnitude of the resultant force acting on the framework shown below. What is the moment of the force system ?

1671_Compute position and magnitude of the resultant force.png
