Q. Can you explain Noninverting Amplifier?

It is called "noninverting" because there is no sign inversion. A typical circuit is shown in Figure. With a finite op-amp gain Ao,

1379_Can you explain Noninverting Amplifier1.png

1765_Can you explain Noninverting Amplifier.png

1826_Can you explain Noninverting Amplifier2.png

Since the ideal op amp draws no current,

i1 = i2

Also, as seen from Figure,

v2 = vi

In equating Equations, one gets

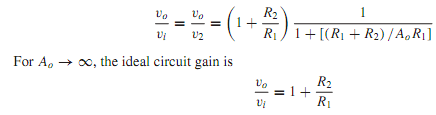

357_Can you explain Noninverting Amplifier3.png

which is the gain of an ideal voltage follower. The same result applies if R1 →∞ (i.e., open circuit) for any finite R2.
