Q. Can you explain about Trapeziodal Clippers?

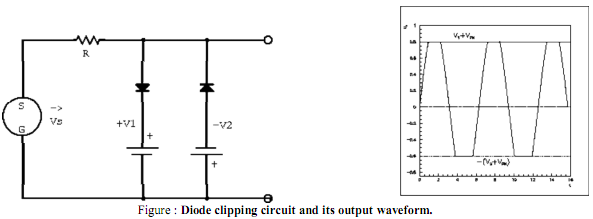

During The Positive half cycle, the diode D1 will be open circuited and the input appears as the output until, the applied bias voltage value is reached by the source. After this point, the diode is a short circuit and if causes the output to be straight line of conduction. During the negative half, until the bias value is reached, the diode is an open circuit and hence input appears as output, the diode is shorted after this and the out put is the straight line of conduction.
