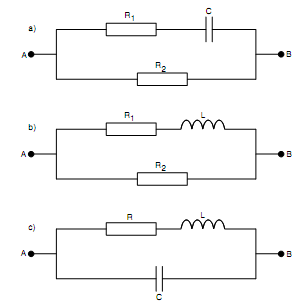

What is the impedance Z between terminals A and B of the networks shown below? Express your answers in polar form.
Three voltages represented by v1(t)=100cosωt, v2(t)=70cos(ωt-400) and v3(t)=60sinωt act together in the same circuit. What is the sum of these 3 voltages? Express your answer as a time-domain voltage.
A voltage v(t) = 200cos1000t is applied to a circuit, resulting in a current of i(t) = 10cos(1000t+ π/6). Determine the resistance and reactance of the circuit, the average power dissipated and the power factor.
The ampere has been defined (by the International Committee of Weights and Measures in 1946) as the current flowing in two long parallel wires 1 metre apart that produces a force o
Q. The K map of a logic function is shown in Figure, in which ds denote don't-care conditions. Obtain the SOP expressions.
Q. What the voltage gains in the FET amplifier? For common source Voltage gain=V o /V i = - µRd / Rd + rd where µ is the amplification factor,Rd the drain resistance a
Power Spectral Density: To introduce the Power Spectral Density (PSD) of a random signal. To study classical methods for PSD estimation. To investigate model-based
The Problem Based Learning is an approach to learning prepares the students to engage with challenges similar to real world problems.The VEB3001-Problem Based Learning has been an
Q. What do you mean by Amplifier block? An amplifier can be modeled as a two-port device, that is, a box with two pairs of terminals designated as input and output, as shown in
1. Design four (4) different 5 volt DC power supplies to operate from 230 volts AC. The four power supplies are to have the same full wave rectifier with capacitive filte
Q. What is a darlington pair? The Darlington circuit consists of two cascaded emitter followers with infinite emitter resistance in the first stage.
Construction - UniJunction Transistor: Construction: The basic structure of uni junction transistor is shown in fig. (a). It essentially consists of a lightly doped N type s
8 bit data to memory This form of the instruction is used to copy 8 bit data directly to the memory location pointed by register pair HL. The instruction format is
