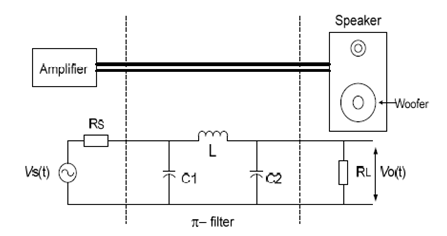

(a) The circuit of Figure 1 represents an amplifier-speaker connection. The filter is a low pass filter which is connected to the woofer. The filter is a -network.
(i) Design a constant-k π low pass filter with a cut-off frequency of 15 kHz and terminated with a resistive load of 600[1].
(ii) Draw the circuit diagram indicating the component values and hence sketch the circuit response, showing it mimics a Butterworth filter response.
(b) Using the table of Normalised values (and indicate the values selected), design a passive 3rd order Chebyshev Low Pass filter, with a cut-off frequency of 15 kHz and a design impedance of 600[1]. The ripple in the pass band is not to exceed 3 dB. Draw the circuit diagram, and show the component values. Sketch the frequency response expected.
(c) By simulating the circuits or otherwise, compare the actual frequency response of the filters of (a) and (b).
it''s 3 assignments and each assignment have 7 questions so each assignment have 1 hour when I open it I have only 1 hour to finish it I can show him or her the practice question t
Name the switching schemes used in a digital exchange
Q. Considering the circuit shown in Figure, sketch v(t) and the energy stored in the capacitor as a function of time.
A single-phase source delivers 100 kW to a load operating at 0.8 lagging power factor. In order to improve the system's efficiency, power factor improvement (correction) is achieve
V- I Characteristics The operation of the diac can be explained by imagining it as two diodes connected in series. When applied voltage in either polarity is small ( less t
Characteristics of magnetic field / flux lines: i. Forming a closing loop ii. Did not crossed against each other iii. Has a certain direction iv. Repel among one anot
Holography In 1947, Denis Gabor invented a different type of photography, know as holography. He named this new technique wave front construction. According to this technique
circuit diagram,working and construction of voltmeter
Current Source Inverter (CSI) Current source inverter has constant input but it can be adjusted. In CSI the amplitude of output current is independent of load. The lo
The observations from these experiments led to 'The Laws of Electromagnetic Induction' 1) 'If the magnetic flux threading through an electrical circuit changes, then an e.m.f.
