Bus arbitration:

In single bus architecture when more than 1 device requests the bus, a controller known as bus arbiter decides who gets the bus; this is known as the bus arbitration.

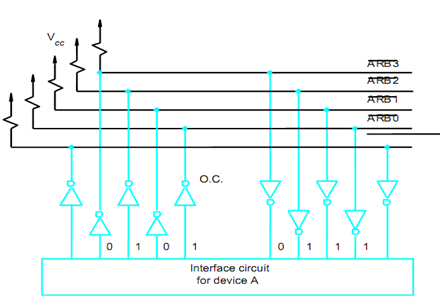

905_Bus arbitration.png



o   Each device on the bus assigned an unique identification number.

o   Place their ID numbers on 4 open-collector lines.

o   All components have equal responsibility in performed the arbitration process.

o   A winner is chosen as a result.
