APU Engine

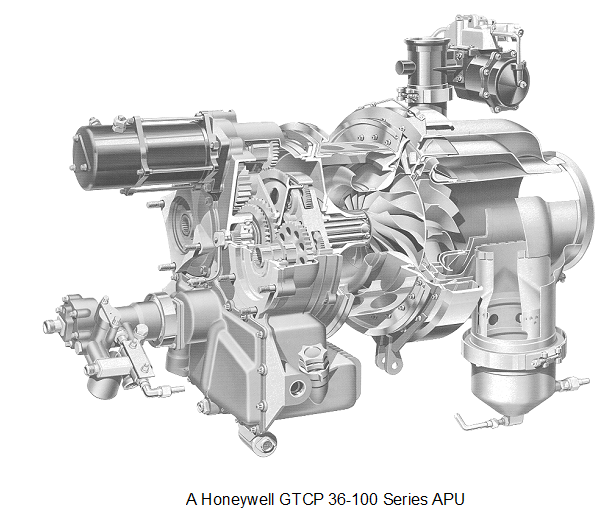

APU engines usually consist of a centrifugal compressor and a radial turbine however, axial compressors and turbines may be added or used in their own right. Centrifugal compressors are used because of their high compression and small size and when combined with a radial type turbine make the APU very compact. These components are also very robust and require less maintenance than axial flow components. Use is also made of reverse flow combustion chambers that again makes the overall size smaller.

220_APU engine.png

In most cases there is a design compromise made between the ideal APU for an aircraft i.e. its ability to provide air and electricity throughout the operational envelope of the aircraft, and it weight and size. It is usual therefore to find that air and electricity are limited to various altitudes dependant upon the parameter required.

APU systems are very basic and the APU will shut down if a problem is sensed. Most APU's will shut down for the following faults:

Fault

Comment

Low Oil Pressure



Engine Overspeed

110% Honeywell 108% Sundstrand

High EGT

849°C Honeywell

Loss of Speed Signal

Electronically monitored APU's need this signal to control the APU.

Los of EGT Signal

Electronically monitored APU's need this signal to control the APU.

Low Speed

Some APU's shutdown if they drop below 90%.

(Some will try and relight at 95%)

Electronic Unit Failure

Loss of Control

The APU may also shut down on the ground (not in flight) for the following faults:

Fault

Comment



Fire

May cause a warning horn in the u/c bay to sound

Generator Drive Low Oil Pressure or High Oil Temperature
