Solution-Evaluate the shearing and normal stresses

Evaluate the shearing and normal stresses

Assignment Help Mechanical Engineering

Reference no: EM135143

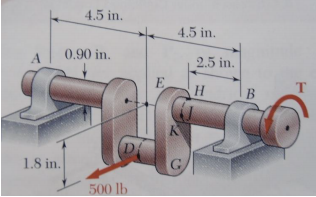

A horizontal 500 lb force performs at a point D of crankshaft AB which is held in static equilibrium by a twisting couple and by reactions at A and B. Knowing that the bearings are self-aligning and exert no couples on the shaft, evaluate (showing all required steps leading to calculations), T

198_Evaluate the shearing and normal stresses.png

A) The shearing and normal stresses at points H and J located at the ends of the horizontal and vertical diameters of transverse section located 2.5 in. to the left of bearing B.

B) The maximum normal stress and the maximum shear stress at H and J, and the inclined plane directions on which they occur. Depict these stresses and inclined plane directions on the Mohr's circle.

Reference no: EM135143
