Voltage, Current Relationships for R, L and C

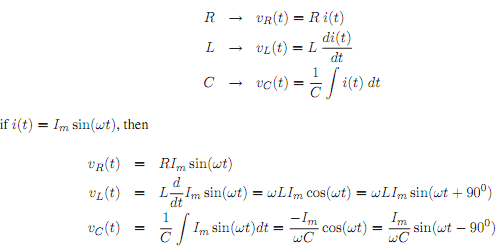

The AC voltage-current relationships for the inductor, resistor, and capacitor in the electric circuit can be given by
It is clear that with AC excitation, all the voltages and currents retain the basic sine wave shape as shown in the Figure (a).

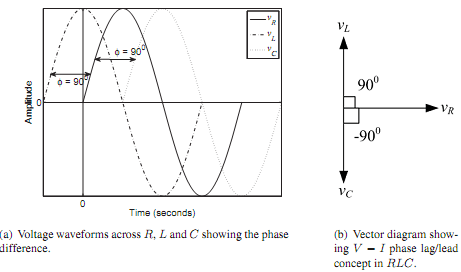

Figure -Phase difference between voltages across R, L and C.
