Supermesh
A supermesh is there when an ideal current source appears between 2 meshes of an electric circuit.
In such a situation, like supernode, mesh equations are written for meshes involved and added giving a single equation. Again, there would be 1 less equation than the number of variables (mesh currents) and thus a constraint equation is required. This would be based on the magnitude of the ideal current source present between the 2 meshes and their mesh currents.
Example:
Determine current supplied by the 10 V voltage source in circuit diagram of Figure given below.

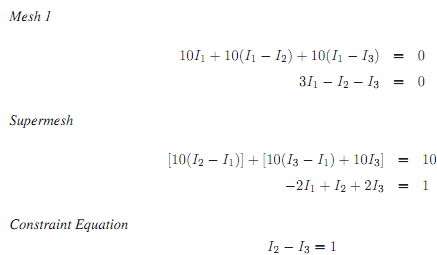

current supplied by 10 V source is I2, hence according to Cramer's rule
