Inductor

An inductor is a piece of conducting wire generally wrapped around a core of a ferromagnetic material. Like capacitors, they are employed as filters as well but the most renowned application is their use in AC transformers or power supplies that converts AC voltage levels.

In an inductor, the V - I relationship is given by the following differential equation

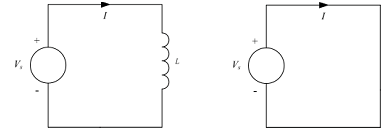

where L is the inductance in Henrys (H) and i is the initial current stored in the magnetic field of the inductor. When i I (constant DC current), di/dt, v=0 . Thus an inductor acts as a short circuit to DC. An ideal inductor is a piece of conducting material with no internal capacitance or resistance. The schematics in Figure given below are equivalent when the supply voltage is DC.




An ideal inductor is replaced by a short circuit when supply voltage is DC.

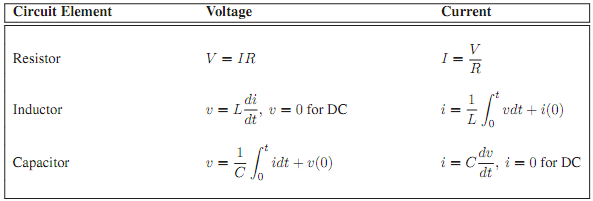

A summary of the V - I relationships for 3 passive circuit elements is given in Table.


Table--V - I relationships for the inductor, resistor, and capacitor
