Example of Bode Plots
Draw approximate Bode plots of following transfer function
The above transfer function consists of a zero, a 2nd order pole and an integrator. Now this can be rearranged in standard form as shown below

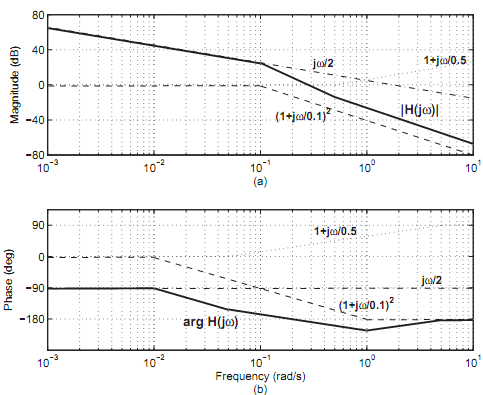

Here 0.5, 0.1 and 2 rad/s are the break frequencies of zero, double pole and integrator. From the rules stated above, Bode plot can be drawn by the inspection as demonstrated in the Figure drawn below
Approximate the Bode plot for transfer function in the Equation stated above where (a) Amplitude response and (b) Phase response.
