DC Voltage Source
This is further subcategorised into the ideal and non-ideal sources.

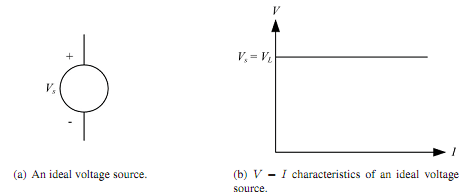

Figure--Schematic and characteristics of an ideal voltage source

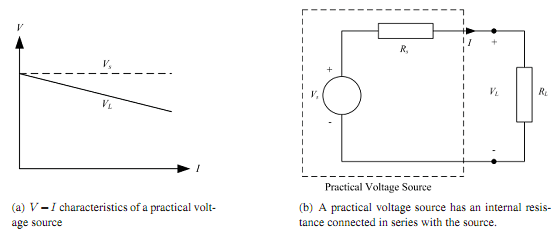

Non-Ideal or Practical Voltage Source For a practical source, the terminal voltage falls off with an increase in the load current. This is shown graphically in Figure (a).
This behaviour can be modelled by assigning an internal resistance, Rs, in series with the source as shown in Figure (b).
Figure---Characteristics and model of a practical voltage source here RL represents the load resistance.
The characteristic equation of the practical voltage source can be written as
For an ideal source, Rs=0 and therefore VL =Vs.
Example
The terminal voltage of battery is 14 V at no load. When battery is supplying 100 A of current to a load, terminal voltage drops to 12 V. Compute the source impedance1.
