Circuit Loads

A load refers to a component or a piece of equipment connected to the output of an electric.

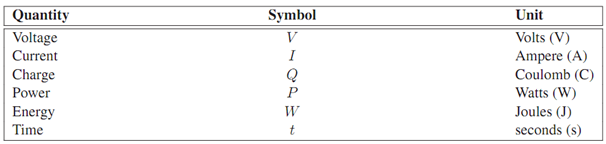

Standard quantities and their units commonly found in the electric circuits. Circuit elements are stated and described below

1. Resistor (R)

2. Inductor (L)

3. Capacitor (C)

A load can either be of inductive, resistive, or capacitive nature or a blend of them. For instance, a light bulb is a resistive load where as a transformer is both inductive and resistive. A circuit load can be referred to as a sink as it dissipates energy whereas the voltage or current supply can be termed as a source.

Table given below shows the basic circuit elements along with their symbols and schematics used in an electric circuit. The R, L and C are all the passive components that is, they do not generate their own EMF whereas the DC voltage and current sources are active elements.



Figure--Common circuit elements and their representation in an electric circuit.
