Biasing a PNP Transistor:

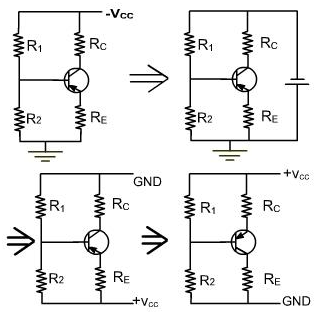

The biasing of PNP transistor is done similar to NPN transistor except that supply is of opposite polarity. The biasing circuits of PNP transistor are shown in figure.

Figure

Example:

Calculate IC and VCE for the circuit shown in  figure 4,

Solution

Voltage across 1K ohm resistor = (1/3) * 30 = 10V
